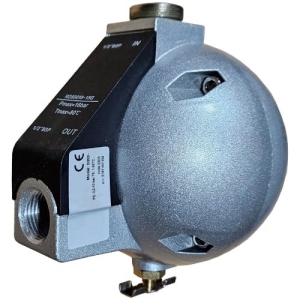

Micro Clean Automatic Zero Air Loss Condensate Drain (1/2″) Fully Automatic for Compressed Air Tanks, Filters, Separators, Dryers via Automatic Float

Brand: Compressed Air USA

Features:

• Completely Automatic Zero Air Loss Mechanical Float Controlled Condensate Drain.
• Energy Efficient Drain, Prevents Air Loss Through Condensate Discharge.
• Helps Prevent Corrosion, Damage, Reduced Efficiency, Reduced Air Capacity, Clogging.
• INLET: 1/2″ NPT, DISCHARGE: 1/2″ NPT. Install directly onto drain points on: Filters, Dryers, Separators, Air Storage Tanks and more.
• Rugged and Reliable Construction of Aluminum/Steel/Composite, Long-term Maintenance-Free Operation. 2-Year Warranty.

Package Dimensions: 114x127x907

Details: MICRO CLEAN by Compressed Air USA
Zero Loss Drain (MC-ZLD-050)

MICRO CLEAN offers a full line of air treatment and condensate management options. Choose from either our Electronic Timer Drain or our Zero Loss Drain for your condensate management needs. Install directly onto drain points from filters, separators, dryers, or air tank receivers and automatically drain condensate from your system to protect your process and your equipment. The most common application is on the bottom discharge line of air receivers, this prevents water/condensate from accumulating which causes corrosion, damage to the system, and reduced air storage capacity. Our ZLD is completely automatic in operation, float controlled, no electronics necessary. No programming or adjustment needed. Rugged and reliable construction ensures long-term maintenance-free operation.

HOW IT WORKS:
Condensate drain lines from filters, separators, or tanks are piped to the Zero Loss Drain inlets.
As condensate collects, it must be drained from the system to improve efficiency and performance, prevent damage, and prevent decreasing compressed air capacity.
The liquid level inside collection cylinder rises, which also raises the float.
The float reaches its designed level and opens the discharge valve, allowing condensate to discharge.
The condensate level lowers, which lowers the float and shuts the discharge valve before all liquid exits.
The remaining liquid prevents air loss from the system by maintaining a barrier to the atmosphere, achieving the highest energy efficiency.

Temp Rating: 35 to 149F
Pressure Rating: 0-290psi
Connections:INLET: 1/2″ NPT, DISCHARGE: 1/2″ NPT
Warranty: 2-Year

UPC: 684417839998
