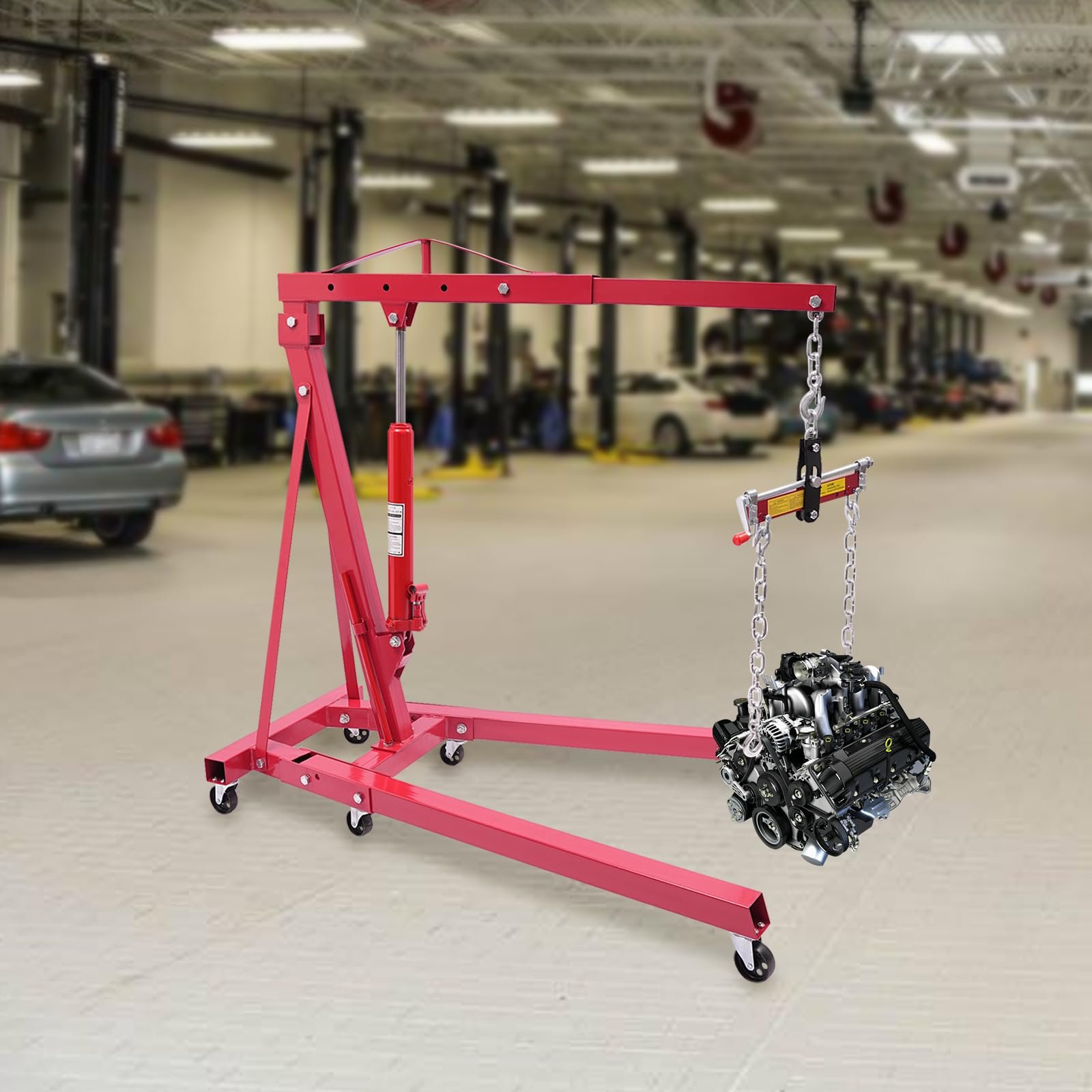

Engine Hoist, 2 TON (4000lbs) Folding Hydraulic Engine Crane, Heavy Duty Steel Hydraulic Shop Engine Crane, Hydraulic Cherry Picker Engine Hoist Lift with 6 Steel Caster Wheels Telescopic Boom Hitch

Brand: SNKOURIN

Features:

• High Quality Materials: This engine hoist is made of high-quality carbon steel and uses spray molding technology to make it hard, corrosion-resistant, rust proof, and wear-resistant, so you can use it with confidence indoors and outdoors.
• Excellent Lifting Capacity: With a 17637 pound hydraulic pump, our engine crane can easily handle loads up to 4409.2 pounds, allowing you to easily lift heavy engines and greatly improve efficiency.
• Complete Set: Our products are equipped with hydraulic cranes and engine leveling machines, without the need to purchase separate equipment, providing you with a time-saving experience. There are 4 adjustable positions (1102lbs, 2204lbs, 3306lbs, 4409lbs) to meet your different work needs.
• Easy to Move: This hydraulic engine crane has six casters, including two swivel wheels, which can be easily and flexibly moved, reducing the need for physical labor. The foldable design allows you to easily store without taking up too much space.
• Easy Installation: The structure is simple, the accessories are complete, and there is a detailed English manual. You can install it yourself and use it in a short period of time. It can be used in car repair shops, workshops, warehouses, etc., to lift car axles, engines, transmissions, transfer cases, cherry picking machines, etc.

Package Dimensions: 0x0x0

Details: How to Use:
1.To raise. Turn the release valve to the right.
2.To lower. Turn the release valve slowly to the left.
3.All pump parts are easily replaceable.
4.To add oil fully collapse jack and add oil to increase the oil-level up to the oil-plug.
5.Use only hydraulic jack oil.

 Specification
Color: Red
Style: Modern
Material: Carbon Steel
Process: Spray Molding
Assembly Required: Yes
Mounting Type: Freestanding
Power Source: ‎Hydraulic Powered
Hydraulic Pump Capacity: 8T/17637lbs
Max. Load Capacity: 2T/4409.2lbs
Load Capacity: 0.5T/1102lbs, 1T/2204lbs, 1.5T/3306lbs, 2T/4409lbs
Product Size: 163*102*147.5cm/64.17*40.16*58.07in
Hook Distance from Ground: Max.148cm/58.27in
Lever Distance from Ground: Max.198cm/77.95in
Top Bracket Length: 89.5-134.5cm/35.24-52.95in
Top Bracket Distance from Ground: Max.238cm/93.7in

 QCJL2J-000600 (Folding Hydraulic Crane)
Package Size: 131*26.5*19cm/51.57*10.43*7.48in
Gross Weight: 46kg/101.41lbs

 QCJL2J-000700 (Engine Leveler)
Package Size: 70*57*10cm/27.56*22.44*3.94in
Gross Weight: 20kg/44.09lbs

 Package Included
1*Folding Hydraulic Crane
1*Engine Leveler
1*English Manual
Other Accessories for Assembly

 Notes
1.Please read the operating manual and product labels carefully before use. And pay particular attention to the safety instructions included.
2.It is for lifting purposes only, not for supporting loads. Please do not overload its rated capacity.
3.Please note that this product is shipped in two packages.
4.Please allow the slight color difference caused by the shooting light and 1-3cm error due to manual measurement, and make sure you do not mind before ordering.
